• 18” Color LCD Monitor with excellent display performance.
• Analog video interface
• EXPAND Function For full screen display in
• 640×480, 800×600 1024×768 and 1280×1024 modes.
• Wide Viewing Angle.160o
• Dot Pitch 0.28 x 0.28 mm
• Space Saving in 19” Rack Drawer.
• DC & AC Power Input

DESCRIPTION

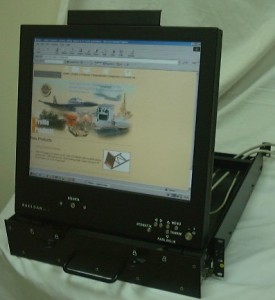

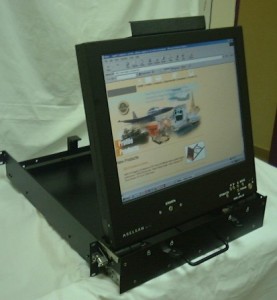

MILPER’s MRD-18D, is a High Performance, Ruggedized Color LCD Monitor based on advanced color TFT technology. The MRD-18D designed specifically for military tactical field and strategic applications.

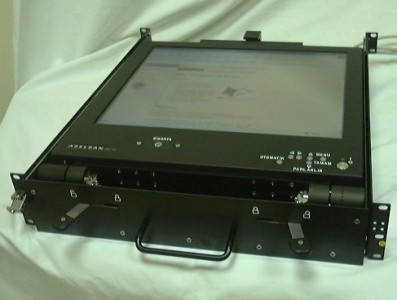

The standard MRD-18D operates from 20 – 30 VDC power source. While in the stowed position it’s dimensions of only 2U high x 17” wide x 22″ deep, the MRD-18D is ideally suited for sheltered, airborne or naval applications requiring space saving in rack mount options.

TECHNICAL SPECIFICATION

LCD Panel

Screen Size 18.1” / 45.9 cm diagonal
Horizontal Pitch 0.280×0.280 mm
LCD Panel Type TFT Active Matrix
1280x (R.G.B.) x 1024 R.G.B. vertical stripe Non glare hard coated
Effective Display Area 359 x 287.2 mm (18”)

Video

Video dot rate 135 MHz.
Input Impedance
– Video
– Sync
75 Ohm
2 K Ohm
Input signal level 700 mVpp
Sync input signal Separate sync, Composite sync, Sync on green.
Sync polarity Positive and negative
Optical Characteristics @ 25 oC
Contrast ratio 250 typical
Brightness 200 nits (typ.)
Viewing angle at contrast ratio > 5:1 Up 80o
down 80o
left 80o
right 80o

Resolution and preset modes

Maximum resolution 1024
15 factory preset modes
H. freq. V. freq.
640 x 350 31.5 70
720 x 400 31.5 70
640 x 480 31.5 60
640 x 480 35.0 67
640 x 480 37.5 75
800 x 600 35.2 56
800 x 600 37.9 60
800 x 600 46.9 75
832 x 624 49.7 75
1024 x 768 48.4 60
1024 x 768 60.0 75
1152×870 69.0 75
1152×900 80.0 75.0
1280×1024 63.9 60.0
1280×1024 80.0 75.0

Plug and play compatibility

Display data channel DDC 1/2B (VESA)
Microsoft , Windows, 95/98 compatible.

ENVIRONMENTAL CHARACTERISTICS

TEMPERATURE

Operating: -10 – +50 oC
Intermittent: -20 – +65 oC
Non Operating: -20 – +60 oC

HUMIDITY

Operating/Storage MIL-STD-810C
Method 507.1 Proc. I 95% RH (non condensation)
VIBRATIONS
Hard Mount: MIL-STD-810D, Method 514.3, Category 1,4,6&9

SHOCK

Operating: MIL-STD-810D, Method 516.4, Proc. I, -15g 11ms. Saw Tooth
EMI/RFI MIL-STD-461D
DRIP PROOF MIL-STD-810E

ALTITUDE

Operating: 15,000 ft.
Non Operating: 40,000 ft.

PHYSICAL CHARACTERISTICS

SIZE

Stowed 3.5” H x17” W x 22” D
Extracted “ H x 17“ W x 1.75: D

WEIGHT 10 Kg.
POWER 20 – 30 VDC or
90-230 VAC 50/60 Hz.
(Dual input DC & AC Optional)
