FEATURES

• Processor :
  Intel® Core™ i7-620M (2.66 GHz)
  Intel® Core™ i5-520M (2.4 GHz)
  Intel® Celeron™ P4500 (1.86 GHz)

• Chipset : Intel® HM55 Platform Controller Hub
• Memory : Up to 8GB DDR3 1066MHz SDRAM
• Fan less Design • 8-26 VDC DC Input
• Up to three Intel® 82574L Gigabit Ethernet ports
• VGA+DVI/HDMI dual display(1x DVI-D connector DVI/HDMI output 1920×1080 resolution + analog RGB 2560×1600 resolution)
• Up to 8x USB 2.0 Ports
• Internal Pin-Head connector for USB dongle conneciton
• One RS-232/422/485 port and three RS-232 ports
• Dual eSATA ports
• Mini-PCIe expansion with SIM support
• 1x Type I CF Socket
• Optional built-in isolated DIO
• Optional PCI-104 expansion bus

• Removable Hard Disk (SSD 64GB 100MB/s R/W).
• Win XP 32bit ,Win7
• 8-CH isolated DI and 8-CH isolated DO
• Complete Array of Rugged Peripherals
• IP67
• Power In and power out (24VDC 1A),MIL 1275
• 38999 connectors
• Shock & Vibrations enhancement Kits Available.
• GPSOCXO Module Spec
• < 1 Min. Warm Up
• 50 Channel WAAS GPS Receiver
• Very Low Power
• PRELIMINARY SPECIFICATION(attached)

DESCRIPTION

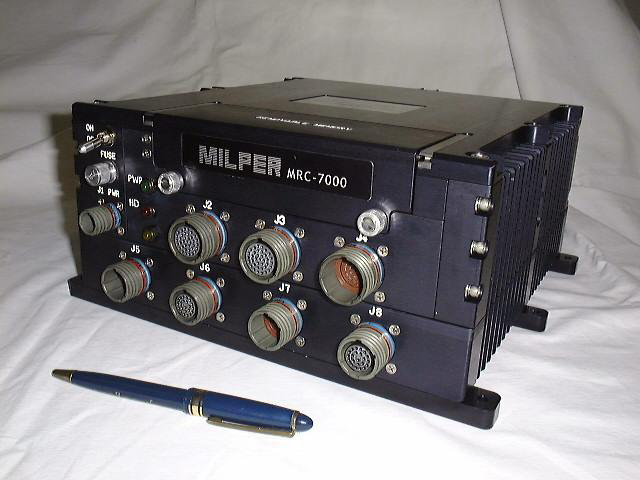

MILPER’s MRC 7000ACS is a high performance one-piece rugged computer designed specifically for Airborne and Military Tactical field applications.
MRC-7000ACS Standard Interfaces:
The modular construction of the MRC-7000ACS allows for the attachment of a range of peripherals, accessories, and interfaces.
64GB Internal Fix or removable Hard Disk (SSD) is a standard option.
The MRC-7000ACS can run WINDOWS or any other operating system designed for the PC.
The standard MRC-7000ACS operates from 20 – 30 VDC power source MIL1275. With dimensions of only 3.5” High x 8.5” Wide x 11” Deep, the MRC-7000ACS is ideally suited for embedded applications requiring to survive tough environments.

KEYBOARD

The MRC-7000ACS features full-size, PC compatible QWERTY keyboard. The keyboard is drip proof, has full-travel keys with tactile feedback and integral pointing device.

OPTIONS

• Up to 4 Gbyte Removable Flash Disk
• Up to 128 GB Removable Hard Disk
• MIL-STD-1553 Interface
• ARINC 429 Interface
• RS-232 3 Pin
• Customer Defined.

Notes:

TYP. ELECTRICAL SPECIFICATIONS GPSOCXO Module Spec :

• Module Specification:
• 1 PPS Accuracy ±50ns to UTC RMS (1-Sigma) GPS Locked
• Holdover Stability <±11us over 3 Hour Period @+25°C (No Motion)
• 1 PPS Output (OCXO Flywheel Generated) 3.3VDC CMOS
• RS-232 Control NMEA and SCPI-99 Control Commands
• 1PPS Level Output for Linux SNTP Server Software (with D Sub RTS pin)
• Avionics Support 3D Velocity Vector (Velocity Output for the X, Y, and Z planes)
• GPS Frequency L1, C/A 1574MHz
• GPS Antenna Active or Passive
• GPS Receiver 50 Channels, Mobile, WAAS, EGNOS, MSAS capable
• Sensitivity Acquisition –144 dBm, Tracking -160 dBm
• TTFF Cold Start – <45 sec, Warm Start – 1 sec, Hot Start – 1 sec
• ADEV 1s – 1E-11
• TTL Alarm Output GPS Unlock and Hardware Failure, and LOCK indicators
• Warm Up Time / Stabilization Time <5 min at +25°C to 1E-08 Accuracy
• Supply Voltage (Vdd) 8.0V to 14.0 VDC (12 VDC Nominal)
• Oscillator Specification:
• Frequency Output 10MHz Sine Wave
• 10MHz Retrace ±2E-08 After 1 Hour @ +25°C
• Frequency Stability Over Temperature (Unlock Condition) ±2.5E-08
• Output Amplitude +13dBm ± 3dBm
• Warm Up Time < 1 min @ +25°C
• Phase Noise
• 1Hz -80dBc/Hz
• 10Hz -110dBc/Hz
• 100Hz -135dBc/Hz
• 1kHz -145dBc/Hz
• 10kHz <-145dBc/Hz

• Connections: Connector Type:

• 1PPS Output, 10MHz Output SMB (SMA upon special order)

ENVIRONMENTAL CHARACTERISTICS TEMPERATURE

Operating:
-30 – +55 oC

Optional
-40 – +55 oC

Intermittent:
-40 – +60 oC

Non Operating:
-40 – +71 oC

HUMIDITY
Operating/Storage
MIL-STD-810C Method 507.1 Proc. I95% RH
(non condensation)

VIBRATIONS
Hard Mount:
MIL-STD-810D, Method 514.3, Category 4, Table 514.3-II & Fig. 514.3-25A

Shock Tray Mount:
MIL-STD-810D, Method 514.3, Category 6.

SHOCK
Operating:
MIL-STD-810D, Method 516.4, Proc. I, -15g 11ms. Saw Tooth

EXPLOSIVE
MIL-5400, Par. 3.2.2.4.10
EMI/RFI
MIL-STD-461
DRIP PROOF
MIL-STD-810E

ALTITUDE
Operating:
15,000 ft. 45,000 ft. is optional
Non Operating:
60,000 ft.

PHYSICAL CHARACTERISTICS SIZE
3.5” H x 8.5” W x 11” D
WEIGHT
3 Kg.
POWER
20 – 30 VDC
