milper

FEATURES

• Processor: Intel® ATOM™ N450 1.66Ghz or Dual Core
• Memory 1GB DDR2-667
• Interfaces: 2x RS232 & 1x RS422 COM Ports,
4x USB2.0 Ports, Gigabit Ethernet Port
• Analog video input; VGA output
• Modular Expandable Construction.
• O/S: Windows XP
• Sealed Enclosure.
• SSD Option available
• 50ms Hold UP support

DESCRIPTION

MILPER’s MRC-104S is a high performance, rugged computer designed specifically for military embedded applications. The unit is conductive cooled.
The MRC-104S features, SATA SSD 64G MLC device (option for 128GB). Standard interfaces include 2 serial RS-232 and 1 serial RS-422, 4 USB2.0 interfaces and 1 Gigabit Ethernet interface. Using additional Frame Grabber the MRC-104S allows capturing of analog video input. The modular construction of the MRC-104S allows for the attachment of a range of compatible peripherals, accessories and interfaces.
The MRC-104S operates from 20 – 30 VDC power source with Hold-Up time support of 50 msec.
With dimensions of only 152mm and X;Y dimensions 178 x 190mm, the MRC-104S is ideally suited for Embedded Mobile Applications requiring survival in tough environments.

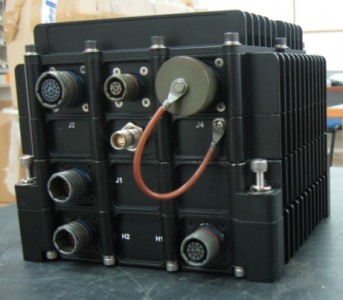

System Connector Description
H1 – Hold Up Output
H2 – Hold Up Input
V1 – Analog Video In
J1 – Power Input
J2 – USB + VGA Interfaces
J3 – RS422 Interface
J4 – Utility

FIELD PROVEN SOLUTION

MRC-104S has been successfully installed and operated in airborne applications (UAV, helicopter). This computer with different configurations have passed Safety Of Flight testing for airborne applications

PERFORMANCE UPGRADEABILITY

The MRC-104S allows easy replacement or adding of CPU or any PC-104 interface.

Dimensions Drawings

OPTIONS

• Removable SSD
• Other Interfaces – Consult Factory.

Ordering information

MRC-104S Rugged MRC-104S, model 1069-900000 series computer

ENVIRONMENTAL CHARACTERISTICS

TEMPERATURE
Operating: -30 – +71 oC

Non Operating: -40 – +85 oC

HUMIDITY
Operating/Storage 95% RH
(non condensation)
VIBRATIONS
Hard Mount: 2 GRMS 20-500Hz, 3 axes,

SHOCK

Operating: 15G 11ms, ½ sine wave, 3 axes (operating), 30G 6ms, ½ sine wave, 3 axes (non-operating)

EMI/RFI MIL-STD-704D
MIL-STD-461F
MIL-STD-810F
ALTITUDE
Operating: 10,000 ft.
Non Operating: 40,000 ft.

PHYSICAL CHARACTERISTICS
SIZE 152 X 190 x 178mm
WEIGHT ~3 Kg.
POWER 20 – 30 VDC

These specifications are subject to change without notice
