milper

FEATURES

• PCB Cage – standard VME/cPCI rack, 7 slots
• Cor2Duo Host SBC support
• Memory up to 4 Gbyte.
• Passive Backplane
• Complete Array of Rugged Peripherals
• Rack Mount and Shock Tray Kits Available

DESCRIPTION

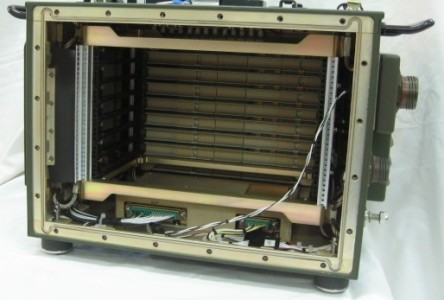

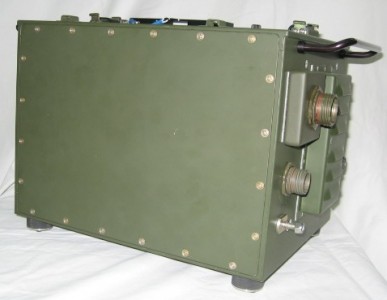

MILPER‘s MRC-508, is a high performance, ruggedized computer chassis designed specifically for military tactical, airborne, Naval and strategic applications. The computer is based on a passive cPCI/VME – backplane with Single Board Computer. It is PC compatible in a lightweight, environmentally resistant package.

The standard MRC-508 features a drip proof keyboard, a Removable 66 Gbyte Flash disk and 2 Gbyte of RAM. Standard interfaces include two serial RS-232, one parallel and one xVGA. Six slots accept cPCI modules that are available for all cPCI compatible computers. This allows for the attachment of a range of compatible peripherals, accessories and interfaces. The MRC-508 can run MS- DOS, SCO UNIX, QNX, MS-WINDOWS or any other operating system designed for the PC.
The standard MRC-508 operates from 12/24VDC power source. With dimensions of only 7‘‘ high x 9.25‘‘ wide x 9.5‘‘ deep, the MRC-508 is ideally suited for outdoor field use. The MRC-508 can be fitted with a kit with slides to satisfy those applications requiring rack mount option, or with table top mounting kit for applications requiring to survive tougher environments.

PERFORMANCE UPGRADEABILITY

The MRC-508 passive Backplane allows an easy replacement of the CPU board to the state of the art processor board operating at the highest clock rate.

OPTIONS

• 128 Gbyte SLC Flash Disk
• MIL-STD-1553 Interface
• HOO9 Interface.
• ARINC 429 Interface
• Video Frame Graber.
• IEEE 488 Interface
• 115/230 VAC 47-440 Hz Power.

ENVIRONMENTAL CHARACTERISTICS

Temperature
Operating -10 – +50°C
Intermittent -20 – +65ْ C
Non Operating -30 – +70ْ C

Rain Proof
MIL-STD-810E Method 506.3 – drip

Solar Radiation
MIL-STD-810G, Method 505.5
Up to 700w/m2

Humidity
MIL-STD-810G ,
Method 507.5
95% RH

Vibrations
MIL-STD-810E, Method 514.4, Cat 1.

Shock MIL-STD-810G, Method 516.5, Proc. I, -20-g 11ms. Saw Tooth
Explosive MIL-5400T
EMI/RFI MIL-STD-461

PYSICAL CHARACTERISTICS

DIMENTIONS 277 High x 330 Wide x 261 Deep
WEIGHT 8 Kg.
POWER 20-30 VDC
