FEATURES

• Operates in Severe Environments.
• Enhanced IDE / SATA Interfaces
• Embedded Digital Servo for Accurate Head Positioning.
• Plug-In Design for Greater Operational Versatility.
• Mechanically compatible with standard 3½“ Device.

DESCRIPTION

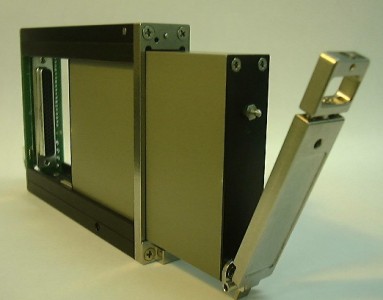

MILPER’s MRDC-10035, is a rugged, high capacity disk drive designed for use as plug-in unit into MILPER’s MRC family of Rugged Computers, or in any enclosure for standard 3½“ Device, customer’s enclosure or any other removable mass storage application. The MRDC-10035 stores up to any Gigabytes of formatted data.

RUGGED DESIGN

Ruggedized for operation in severe environments – where extreme temperatures, shock, vibration, humidity and air pressure are common – the MRDC-10035 is field proven in “on-the-move” operation in tracked and wheeled vehicles, as well as airborne application. Since no warm up time is required, near instant readiness is provided at all operating temperatures. The sealed, housing encompasses the entire drive mechanism, including electronics, isolating the drive from shock and vibration and protecting it from high humidity and changes in altitude. An embedded digital servo system automatically compensates for temperature variation, ensuring accurate, reliable head positioning over the entire operating temperatures range.
To prevent damage during handling and transport, the heads are automatically parked and secured by a locking mechanism when power is removed.

PLUG-IN DESIGN

The interchangeability of Milper’s plug-in disk cartridges allows for simple removal of secure/classified data, easy changes to hardware or operating system configuration, unlimited data storage capacity, and very fast data backup.

 DIMENSIONS

Cartridge
Height 3.15”
Width 0.80”
Length 5.10”
Weight 420 gr.

Cradle
Height 4.00”
Width 1.00”
Length 5.90”
Weight 230gr.
Power
Input Power 5 VDC
Consumption 0.3-Watt Max

ENVIRONMENTAL CHARACTERISTICS

TEMPERATURE
Operating: -18 +55 oC
Intermittent: 20 +65 oC
Non Operating: 50 +71 oC

HUMIDITY
Operating/Storage MIL-STD-810C Method 507.1 Proc. I, 95%RH (non condensation)

VIBRATION
Operating Sinusoidal 4g, 5-200Hz
Non Operating Sinusoidal 6g, 5-200Hz

SHOCK
Operating 10g, 11 msec half sine
Non Operating 40g, 11 msec half sine

EXPLOSIVE MIL-5400, Par. 3.2.2.4.10

EMI/RFI MIL-STD-461D
ALTITUDE
Operating 12,000 feet
Non Operating 40,000 feet

These specifications are subject to change without notice
