Description

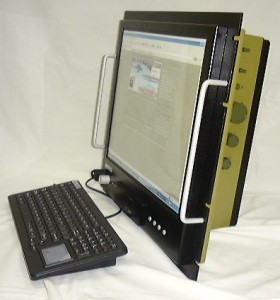

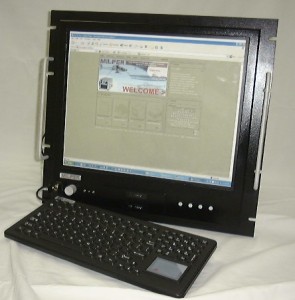

MILPER’s MRCD-106 is a high performance, one-piece ruggedized computer/Workstation designed specifically for military tactical field and strategic applications. The system is based on a passive backplane with Single Board Computer. And 19” LCD Display. It is constructed in an environmentally resistant package. The MRCD-106 is ideally suited for sheltered, Airborne or Naval applications.

FEATURES

CPU -Intel® Pentium® 4 processor with Hyper Threading Technology, 2.0GHz ~ 3.2GHz+
Front Side Bus – 800MHz/533MHz/400MHz
Chipset – Intel® 875P chipset
L2 Cache – 256K/512K, CPU integrated
BIOS – Award BIOS, ACPI supported
System Memory Two sockets supports up to 2GB DDR266/333/400 memory Supports dual channel, ECC function
Micro AGP VGA – ATI Mobility M10 VGA, AGP8X, 64MB frame buffer (DDR) via IBA110-64A, supports CRT, LVDS, TV-out, 2nd CRT
Primary LAN – Intel® 82551QM 10/100Mb Ethernet controller
Secondary LAN (optional) – Intel® 82547GI Gigabit Ethernet controller.
Audio – ICH5R integrated audio with AC97 codec, ALC650
Supports 5.1 channel
LPC I/O – Winbond 83627HF LPC I/O supports IrDA, LPT, Com1 (RS232), COM2 (RS232/422/485), FDC and hardware monitoring.
IDE Interface – ICH5R built-in IDE1, IDE2 (Ultra DMA 33//66/100).
FDD Interface – Supports up to two floppy disk drives: 3.5″ and/or 5.25″ drives; 3 Mode support
Parallel Port – One parallel port supports SPP/EPP/ECP.
Serial Ports –
One RS-232/422/485 and one RS-232 port
Serial ATA – Two SATA ports, support RAID0 or RAID1
Watchdog Timer – Generates system reset; 256 levels
Solid State Disk Interface – (Optional) DiskOnChip socket, supports up to 288MB
Hardware Monitoring – Built in W83627HF; monitors system/CPU temperature and voltage status
USB – Supports 4 USB ports, USB 2.0 compliant

Monitor

   LCD Panel

   Video dot rate – 135 MHz.

   Optical Characteristics @ 25 ^oC

   Resolution and preset modes

Peripherals

CD-ROM – Low Profile CD-DVD
Hard Disk – 60 GB Internal Fix.
Additional Interfaces slots Four Slots, accept PCI printed circuit modules that are available for all PC compatible computers.

OPTIONS

• 40 or 60 GByte Removable Disk
• MIL-STD-1553 Interface
• ARINC 429 Interface
• IEEE 488 Interface
• IEEE
• Small Computer System Interface (SCSI)
• PCMCIA Interface and Cradle.
• FLASH Memory .
• 115/230 VAC 47-440 Hz Power.

ENVIRONMENTAL CHARACTERISTICS

TEMPERATURE
Operating: -18 – +55 oC
Intermittent: -20 – +65 oC
Non Operating: -30 – +71 oC

HUMIDITY
Operating/Storage MIL-STD-810C, Method 507.1 Proc. I, 95% RH
(non condensation)

VIBRATIONS
Hard Mount: MIL-STD-810D, Method 514.3, Category 4, Table 514.3-II & Fig. 514.3-25A
Shock Tray Mount: MIL-STD-810D, Method 514.3, Category 6.

SHOCK

Operating: MIL-STD-810D, Method 516.4, Proc. I, -15g 11ms. Saw Tooth
EXPLOSIVE MIL-5400, Par. 3.2.2.4.10
EMI/RFI MIL-STD-461, Class 3
DRIP PROOF MIL-STD-810E

ALTITUDE
Operating: 15,000 ft.
Non Operating: 40,000 ft.

PHYSICAL CHARACTERISTICS

SIZE 10U H x 19” W x 6” D
WEIGHT 15 Kg.
POWER 20 – 30 VDC, 230VAC 50/60Hz Optional.
